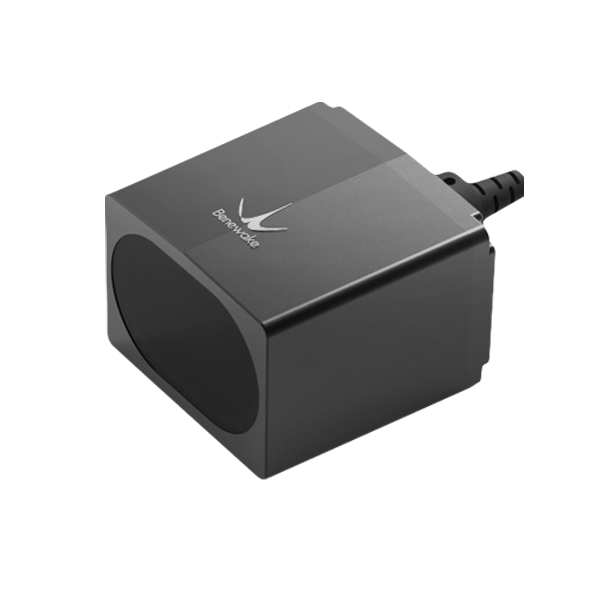

TF03 100m is a industrial high-speed LiDAR, It contains two versions with 100m and 180m. TF03 includes compensation algorithms for outdoor glare and other interference, so it works normally under strong light environment and rain, fog and snow conditions. Different built-in operating modes let customers change parameters and configuration to meet their need.
Order Datasheet
Operating Range
0.1 - 100 m
Frame Rate
1 Hz - 10 kHz
Weight
77 g ± 3 g
IP rating
IP67
FOV
0.5°
Communication Interface
UART / CAN /IO
